FS360 Stretch Wrapper
FS360 Stretch Wrapper

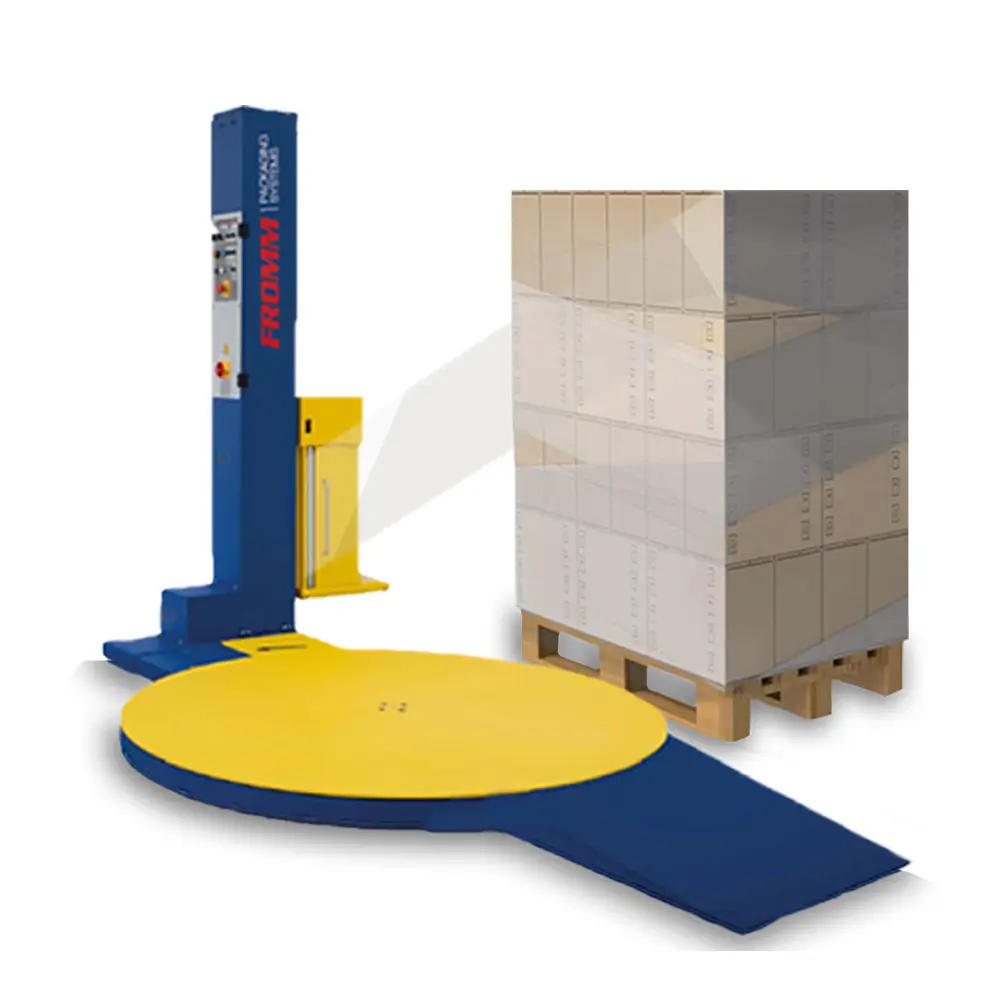

The FS360 Stretch Wrapper is a reliable entry level stretch wrapper designed to wrap pallets quickly, consistently and at an affordable price.
Our Plug & Play design allows you to start wrapping with no specialist training required.
Wraps pallets up to H3000mm, turntable dia. 1500-2200mm, loads 1500-2000kg. Soft start & stop. Beep at start of wrapping cycle. Choice of 4 film carriages from mechanical core brake to 200% OP controlled pre-stretch. Ultra fast film change. Common options include top press, Ramps, Pit frames End of cycle cutting device.
Following modes can be controlled from the HMI: Auto or manual; Turntable rotation speed (6-12rpm); vertical carriage speed, inverter controlled, 2-4m/min; Double wrapping cycle (up/down); Single wrapping cycle (up only); Top and bottom wraps (0-5); Film tension (motorized pre-stretch model only).
Features
- Wraps pallets of heights up to 3000mm
- Turntables from dia. 1500 (1500kg) - 2200mm (2000kg)
- Photocell for pallet height detection
- Soft start and stop
- Audio signal at start of wrapping cycle
- Automatic Cutting at End of Cycle
- Choice of 4 film carriages from mechanical core brake to 250% OP controlled pre-stretch.
- Ultra fast film change.
- Lifting points in machine frame for safe and easy relocation by forklift truck.

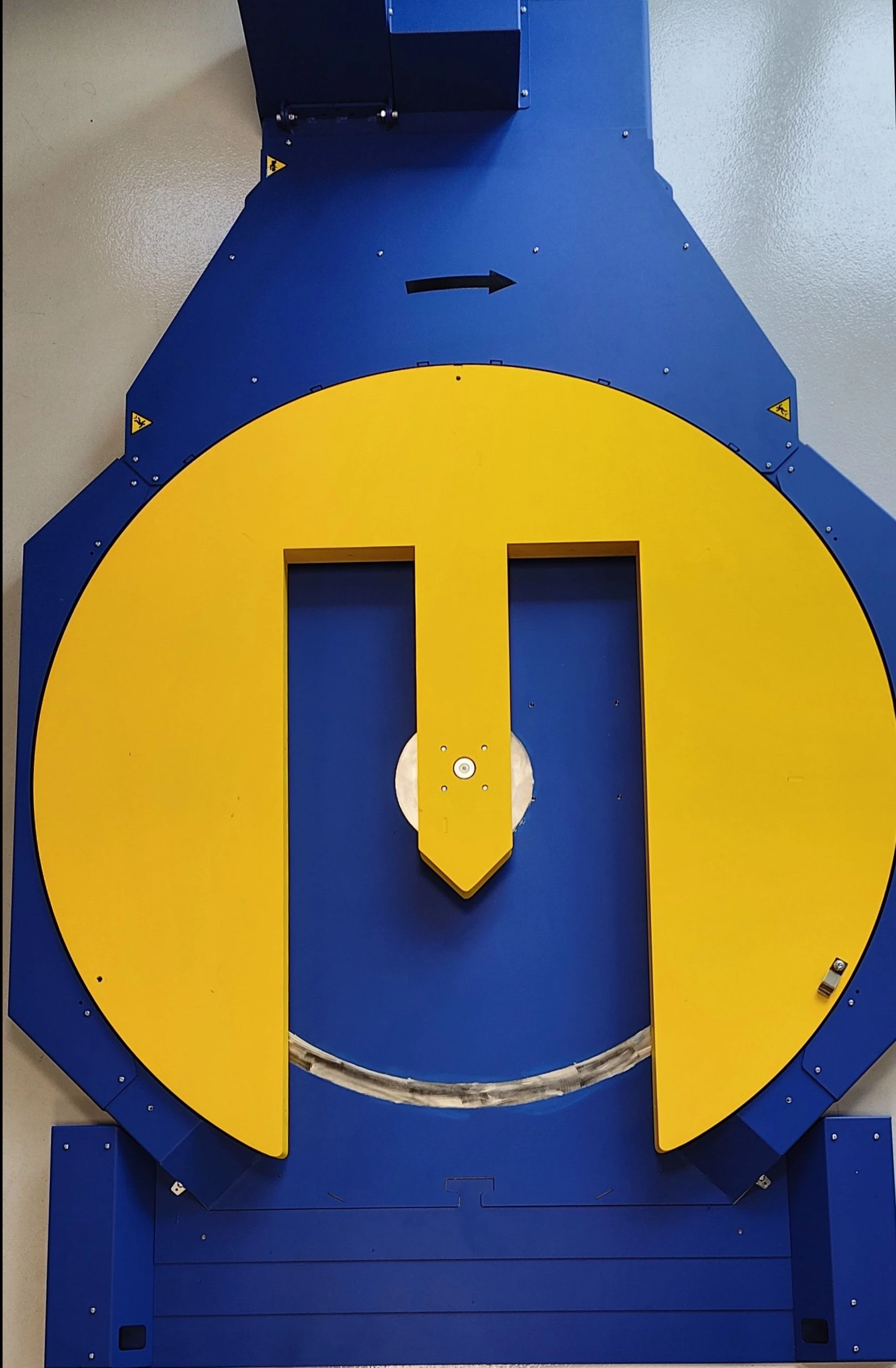

- Optional open turntable to accommodate for loading with a hand pallet truck

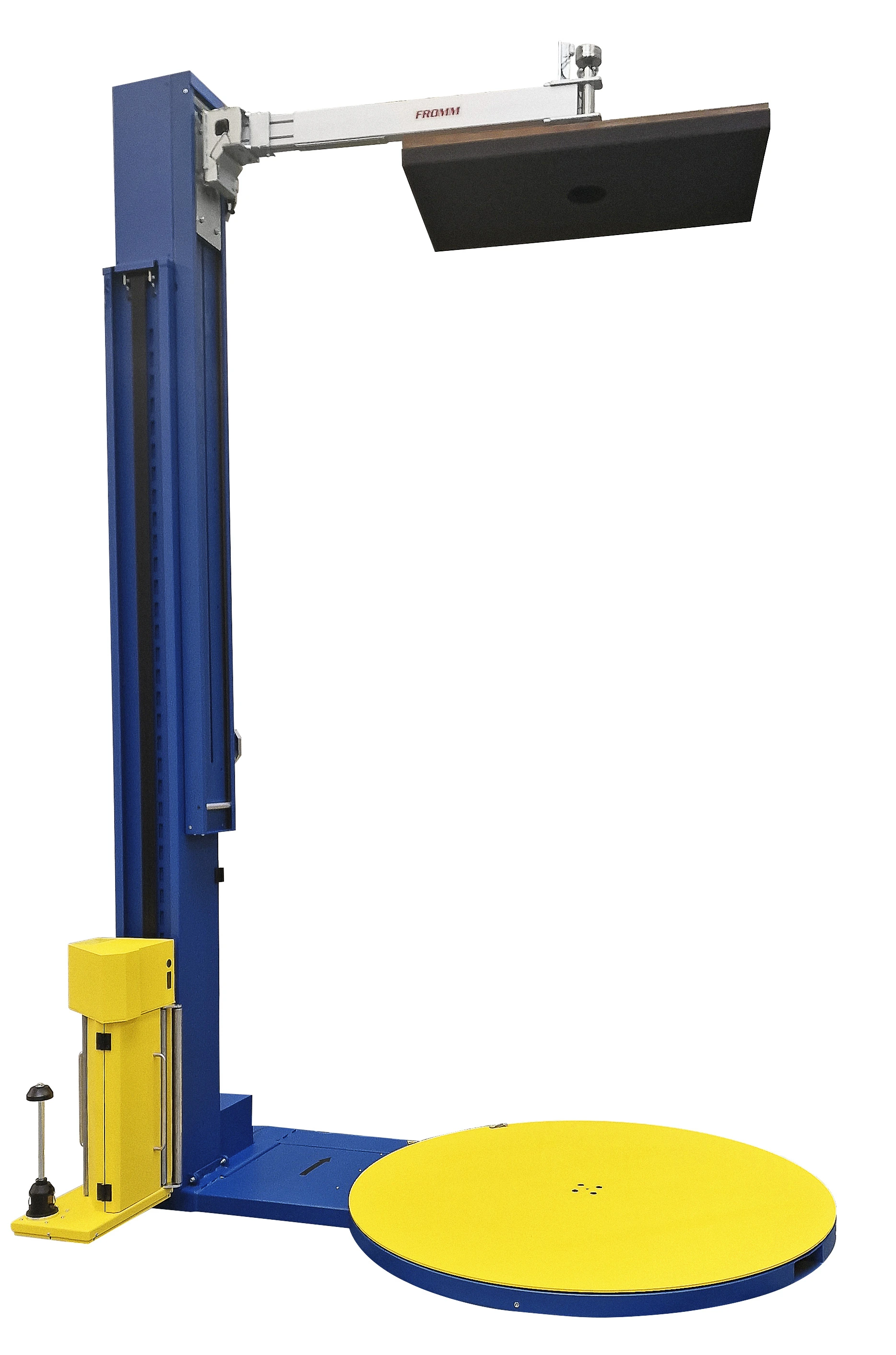

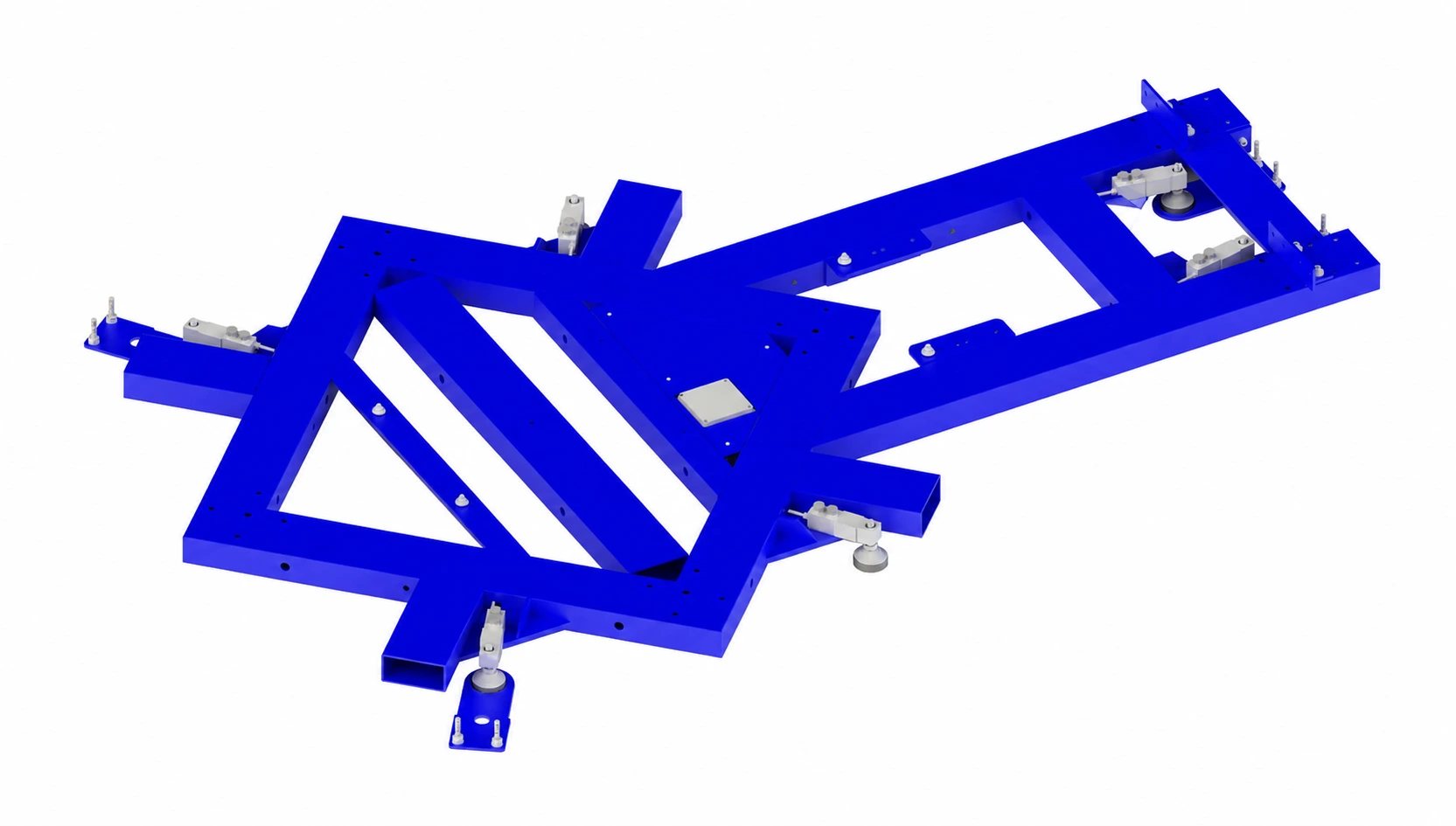

- Options include: Top Press, Ramps, Floor mounting frame (recesssed into floor) Horseshoe Turntable, End of cycle cutting device, Integrated Weighing system, Printer for weighing system.
Benefits
- Requires minimal training to operate
- Ideal for wrapping 1-50 pallets per day
- “Plug & Play” Installation
- Machine is easy to move using a forklift truck
- Wrapping can be set to start as low as turntable level
Brochure
-
- FS360 Download
