FV350/250 Automatic Inline Orbital Stretch Wrapper

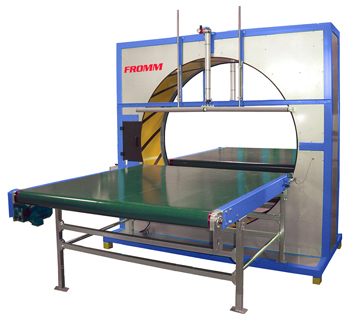

The FROMM FV350/250 Automatic Inline Orbital Stretch Wrapper is designed to stretch wrap long products such as pipes, tubes and rods. This fully automatic programmable machine with a 2500mm diameter ring, when combined with conveyors, and safety systems is the ideal solution for small process lines.

Extremely low maintenance, the FROMM FV range is exceptionally easy to install & operate – Plug and play, no fuss.

Optional extra’s include; top presser, side rollers, driven conveyors, automatic driven rollers, and a short products bridge.

star-icon.gif Features
  • Double reel film dispensers
  • 2500mm wrapping ring
  • Adjustable speed (RPM)
  • Mechanical film break
  • Automatic film cutting at end of wrap cycle
  • Six sided wrapping programs available
plus-icon.gif Benefits
  • Twin wrapping heads for optimal function
  • High production throughput
  • Easily accommodate different products
  • Programmable wrapping functions

Technical Specifications

Machine Specifications

  • Ring Diameter 2500mm
  • Max. Product Size H: 1750mm, W: 2490mm
  • Min Product Size H: 600 mm, W: 600 mm
  • Max. Rotating Speed 45 RPM
  • Max. Product Weight Dependent on conveyors
  • Film Width 250mm
  • Power 240 Volts
  • Air Supply Needed 6 Bars

Machine Options

  • Conveyors Infeed and Outfeed
  • 6 Sided Wrapping Program Available
  • Automatic Film Cut and Clamp Available
  • Top Pressers Available
  • Bridge for Short Products Available
  • Safety System Available
