FV300/50 Semi-Automatic Orbital Stretch Wrapper

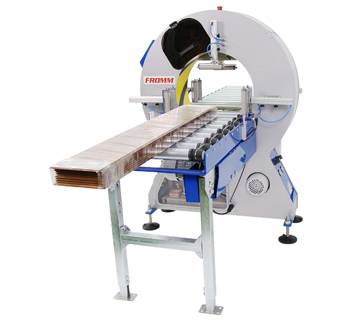

The FROMM FV300/50 Semi-Automatic Orbital Stretch Wrapper is perfect for wrapping long products (min. 350mm) through it’s 500mm diameter ring. For example, pipes, tubes or rods.

Extremely low maintenance, the FROMM FV range is exceptionally easy to install and operate – Plug and play, no fuss.

Optional extras include, automatic film clamp and cut, gravity roller conveyors, side verticle rollers, and a short product bridge.

star-icon.gif Features
  • Double reel film dispensers
  • Adjustable speed (RPM)
  • Mechanical film break
  • Manual start by foot switch
  • Top pressers available to hold load in wrapping cycle
plus-icon.gif Benefits
  • High speed throughput
  • Easily accommodates different products
  • Plug and play technology
  • Fast roll changes

Technical Specifications

Machine Specifications

  • Ring Diameter 500mm
  • Max Product Size H: 340 mm, W:340 mm
  • Max Rotating Speed 150 RPM
  • Max Product Weight Dependent on conveyors
  • Film Width 100mm
  • Power 240 Volt
  • Air Supply Needed 6 bars

Machine Options

  • Conveyors Infeed and Outfeed
  • Automatic Film Cut and Clamp Available
  • Top Pressers Available
  • Bridge for Short Products Available
  • Safety System Available
