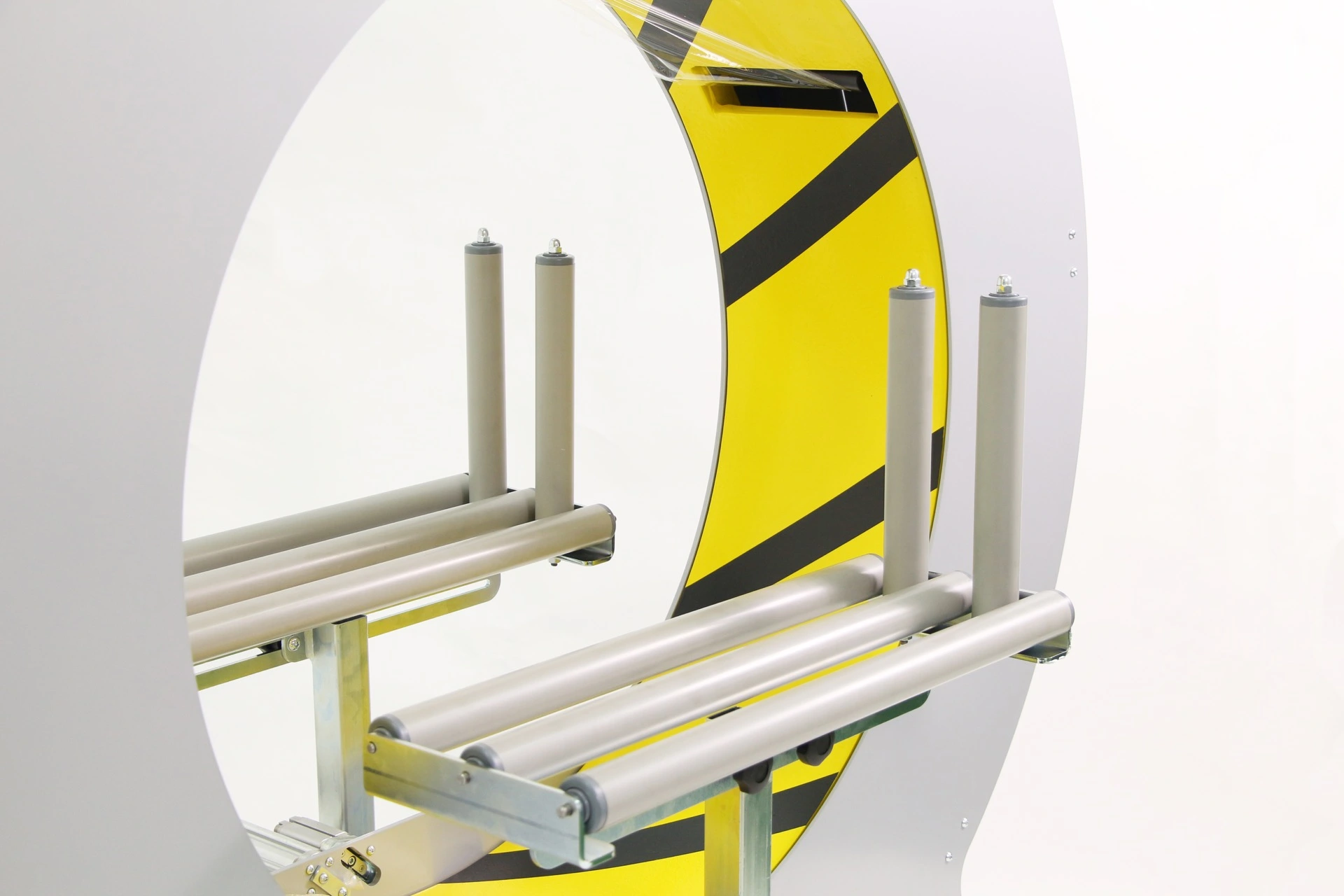

FV300/90 Semi-Automatic Orbital Stretch Wrapper

FV300/90 Semi-Automatic Orbital Stretch Wrapper

FROMM’s FV300/90 Semi-Automatic Orbital Stretch Wrapper is perfect for wrapping long products (min. 350mm) through it’s 900mm diameter ring.

Extremely low maintenance, the FROMM FV range is exceptionally easy to install & operate – Plug and play, no fuss.

Supplied as standard: automatic film clamp and cut, 5" colour touch screen.
Options include: modem, gravity conveyors, top press, side guides, bridge to stop short products falling into the wrapping area.

The following products can easily be wrapped using a spiral wrapper: aluminium profiles, architraves, handrails, ladders, MDF mouldings, pipes, racking, radiators, rods, skirting boards, tubes, window frames.

quote request

Features

Double reel film dispensers
Adjustable speed (RPM)
Mechanical film break
Manual start by foot switch
Top pressers available to hold load in wrapping cycle

Benefits

High speed throughput
Easily accommodates different products
Plug and play technology
Fast film reel changes
Fully CE compliant

Machine Specifications

Ring Diameter
900mm
Max Product Size
H: 640mm, W: 890 mm
Min Product Size
H: 200 mm, W: 200 mm
Max Rotating Speed
90 RPM
Max Product Weight
Dependent on conveyors
Film Width
100mm/ 166mm (38mm core)
Power
240 Volts
Air Supply Needed
6 bars

Machine Options

Conveyors
Infeed & outfeed
Automatic Film Cut and Clamp
Standard
Top Press and/or Side Guides
Available
Bridge for Short Products
Available
Safety System
Available
