FV300/50 Semi-Automatic Orbital Stretch Wrapper

FV300/50 Semi-Automatic Orbital Stretch Wrapper

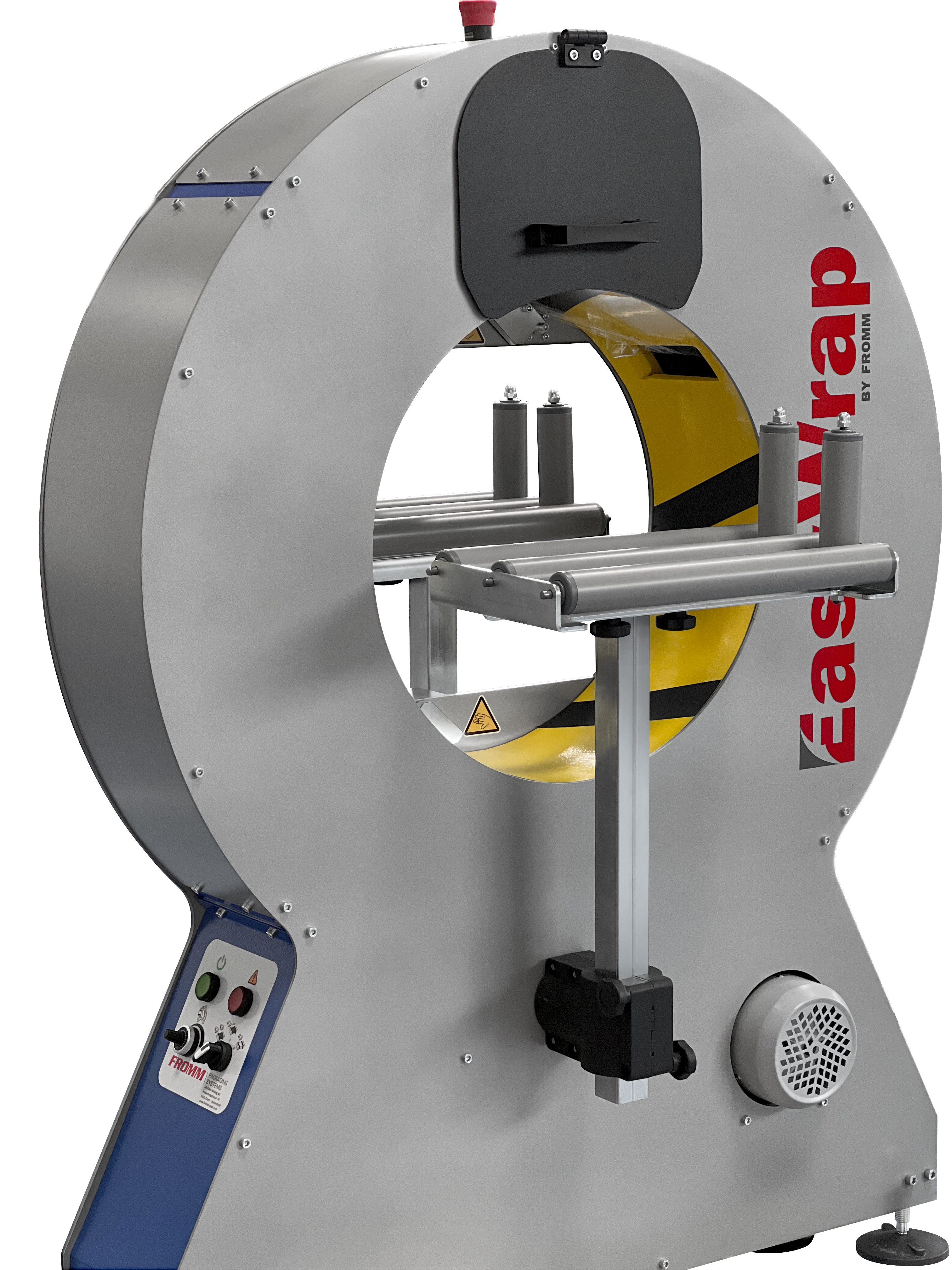

The FROMM FV300/50 Semi-Automatic Orbital Stretch Wrapper is perfect for wrapping long products (min. L350mm) through it’s 500mm internal diameter ring.

Extremely low maintenance, the FROMM FV range is exceptionally easy to install and operate – Plug and play, no fuss.

It is the only machine in its class to feature as standard: two stretch film reels, automatic film clamp and cut (for both reels), 5" colour touch screen.

Options include: modem, additional gravity conveyors, top press, bridge to stop short products falling into the wrapping area.

The following products can easily be wrapped using a spiral wrapper: aluminium profiles, architraves, handrails, ladders, MDF mouldings, pipes, racking, radiators, rods, skirting boards, tubes, window frames

quote request

Features

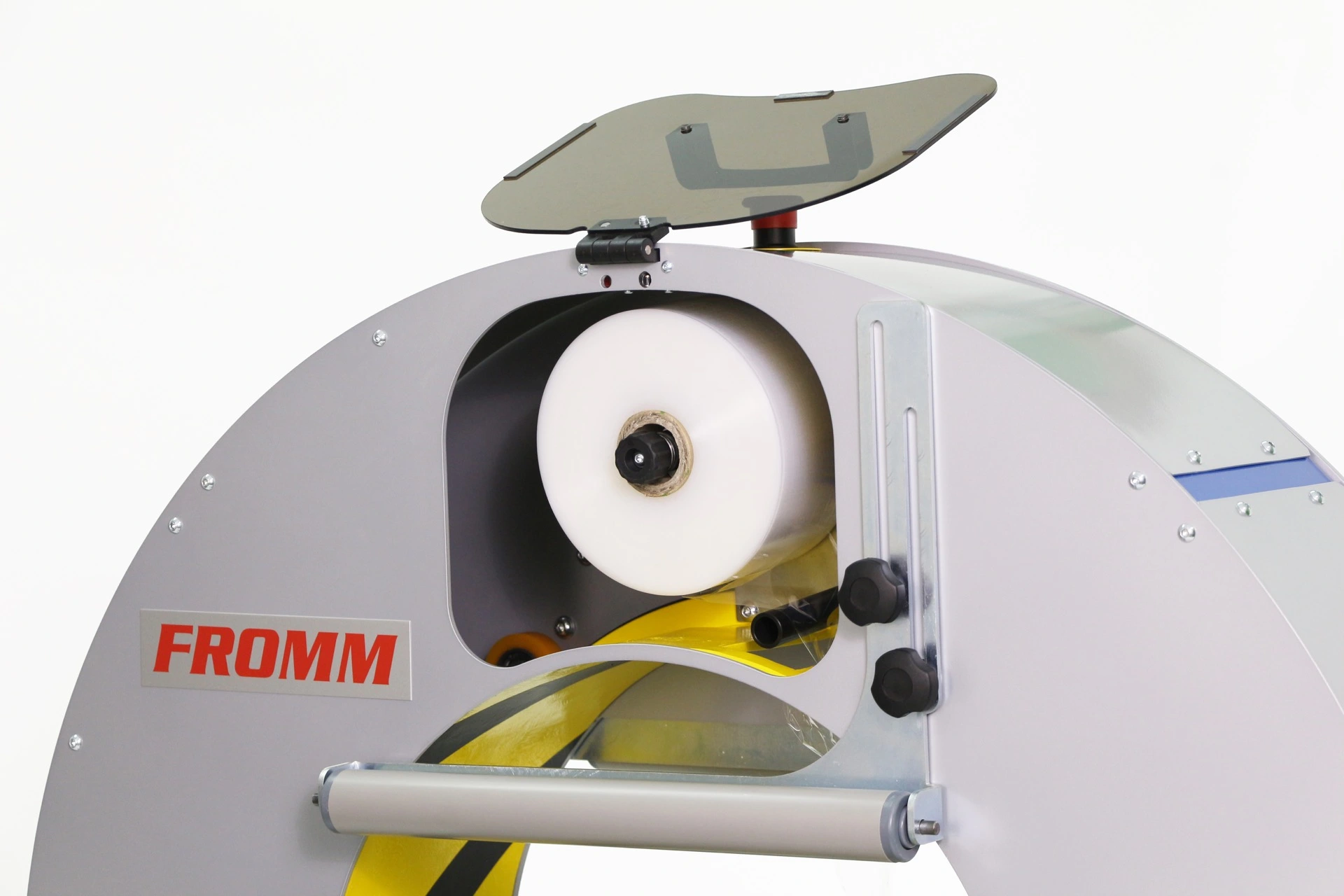

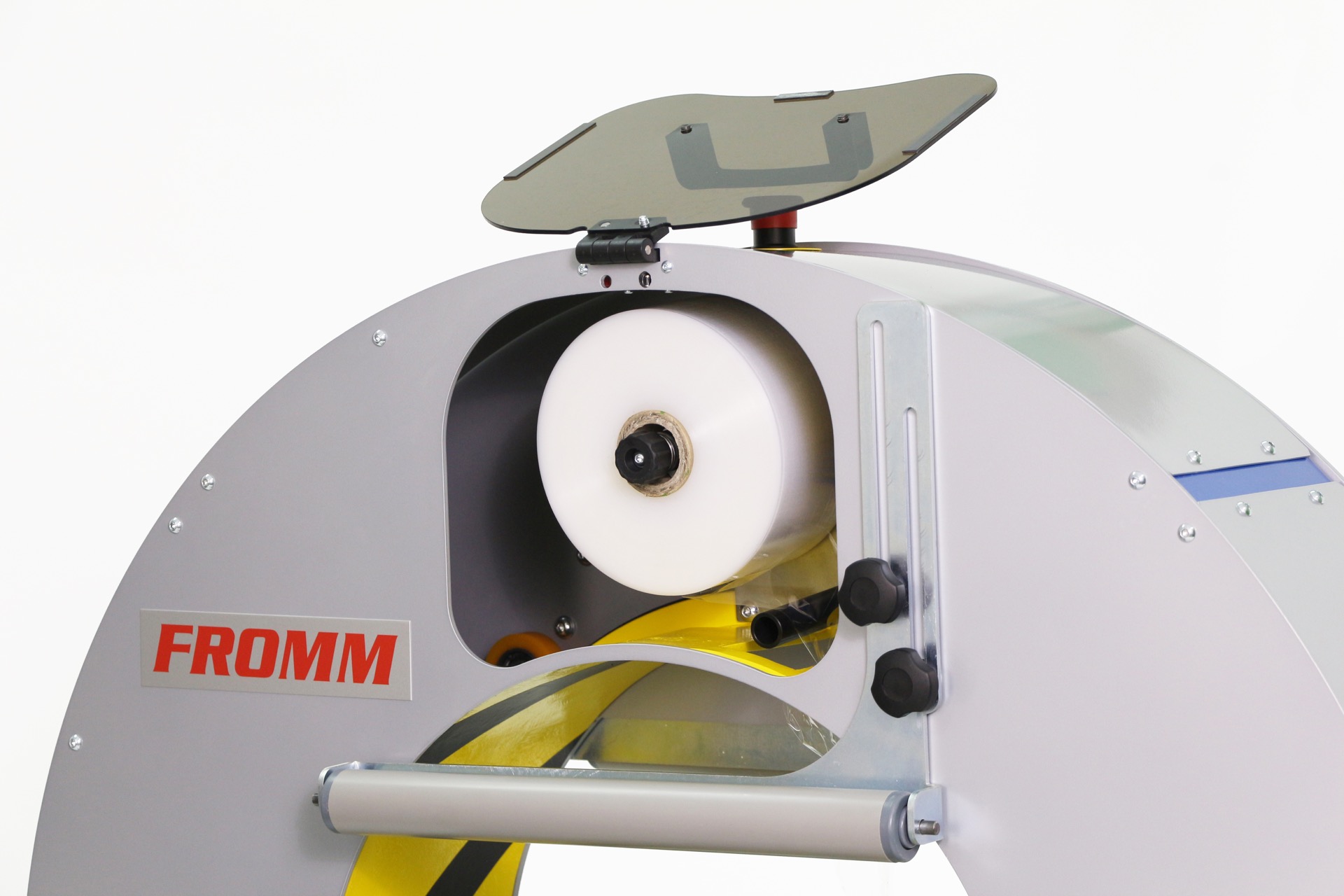

Double reel film dispensers
Adjustable speed (RPM)
Mechanical film break
Manual start by foot switch
Top pressers available to hold load in wrapping cycle

Benefits

High speed throughput
Easily accommodates different products
Plug and play technology
Fast film reel change over
Fully CE compliant

Machine Specifications

Ring Diameter
500mm
Max Product Size
H: 340 mm, W:340 mm
Max Rotating Speed
150 RPM
Max Product Weight
Dependent on conveyors
Film Width
100mm (38mm core)
Power
240 Volts
Air Supply Needed
6 bars

Machine Options

Conveyors
Infeed & Outfeed
Automatic Film Cut and Clamp
Standard
Top Press and/or Side Guides
Available
Bridge for Short Products
Available
Safety System
Available

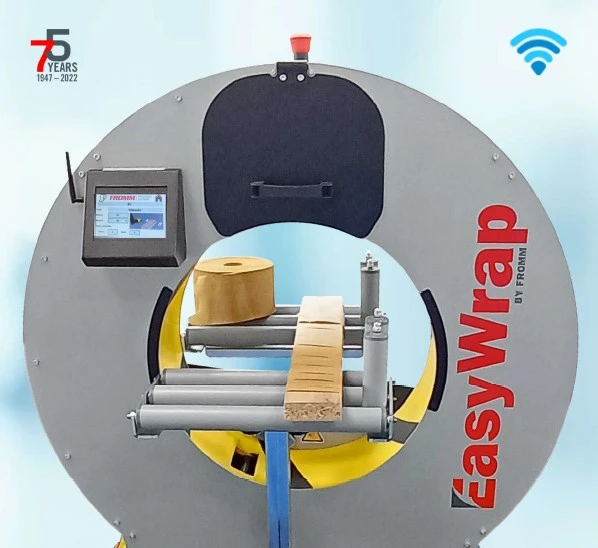

FV300 Series Brochure

FV300 Series Brochure Download
