FV300/250 Semi-Automatic Orbital Stretch Wrapper
FV300/250 Semi-Automatic Orbital Stretch Wrapper
The FROMM FV300/250 Semi-Automatic Orbital Stretch Wrapper is perfect for wrapping long products (min. 350mm) through it’s 2500mm diameter ring.
Extremely low maintenance, the FROMM FV range is exceptionally easy to install and operate – Plug and play, no fuss.

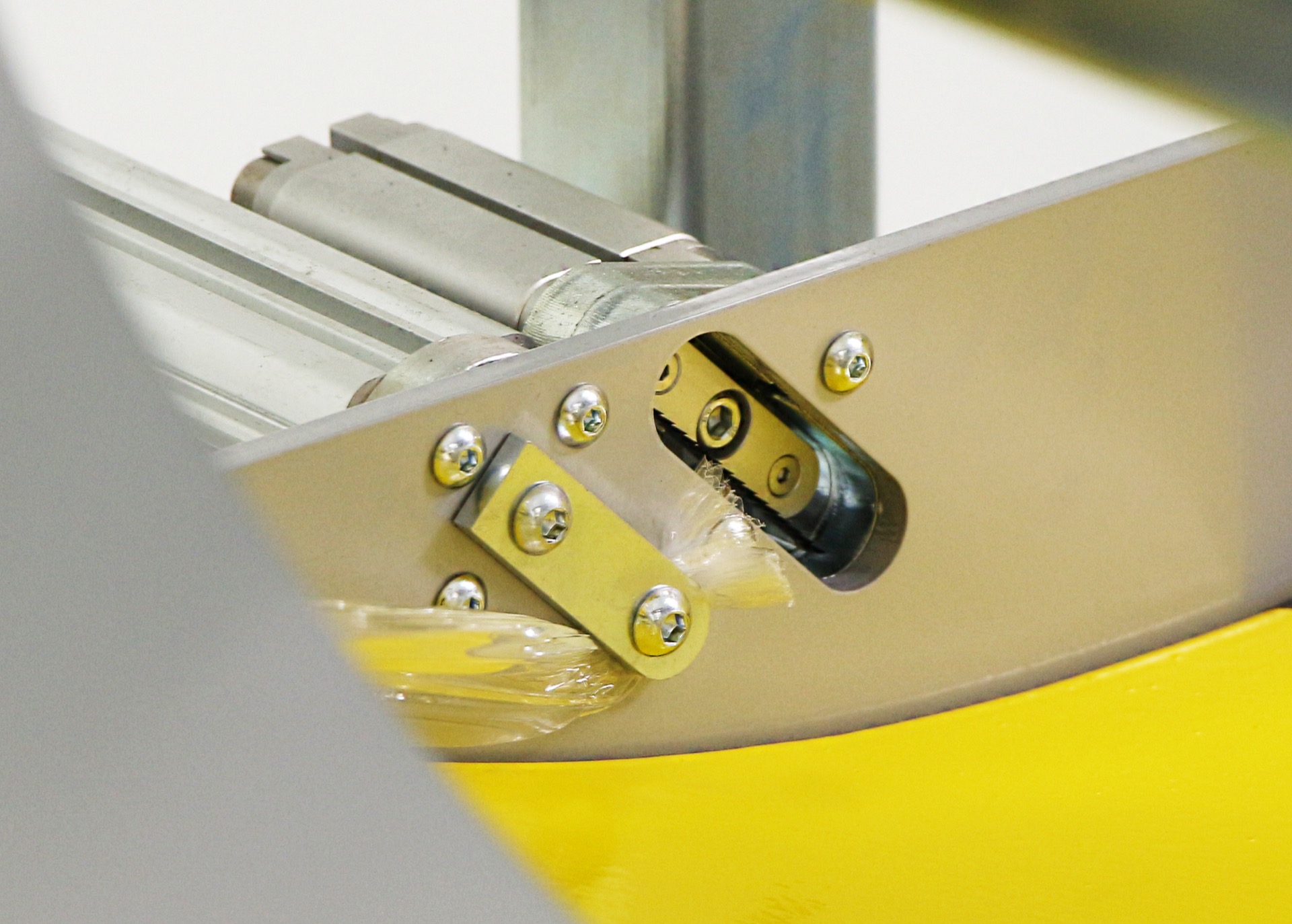

Supplied as standard: automatic film clamp and cut, 5" colour touch screen.

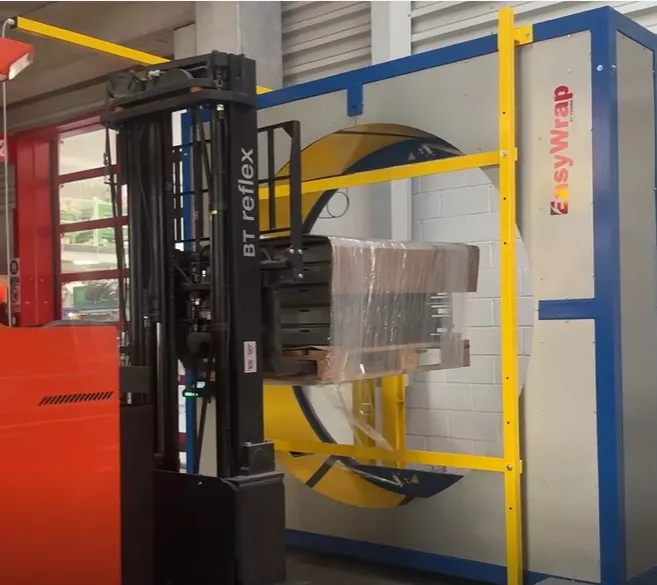

Options include: modem, gravity roller conveyors, side vertical rollers, a special bridge to stop short products falling into the wrapping area. We also supply a model for use with fork lift trucks with optional wired or wireless remote and optional metal guarding.
The following products can easily be wrapped using a spiral wrapper: aluminium and steel sheets, ladders, pipes, racking, radiators, rods, tubes, window frames and palletized products using the forklift option
Features
- Double reel film dispensers
- Adjustable speed (RPM)
- Mechanical film break
- Manual start by foot switch
Benefits
- High speed throughput
- Easily accommodates different products
- Plug and play technology
- Fast film reel changes
- Fully CE compliant
Machine Specifications
- Ring Diameter2500mm
- Max Product SizeH: 1830mm, W: 2490mm
- Min. Product SizeH: 600 mm, W: 600 mm
- Max Rotating Speed450 RPM
- Max Product WeightDependent on conveyors
- Film Width100/166/250mm (38mm core)
- Power240 Volts
- Air Supply Needed6 bars
Machine Options
- ConveyorsInfeed & Outfeed (driven or gravity)
- Automatic Film Cut and ClampStandard
- Top Press and/or Side GuidesAvailable
- Bridge for Short ProductsAvailable
- Safety SystemAvailable
