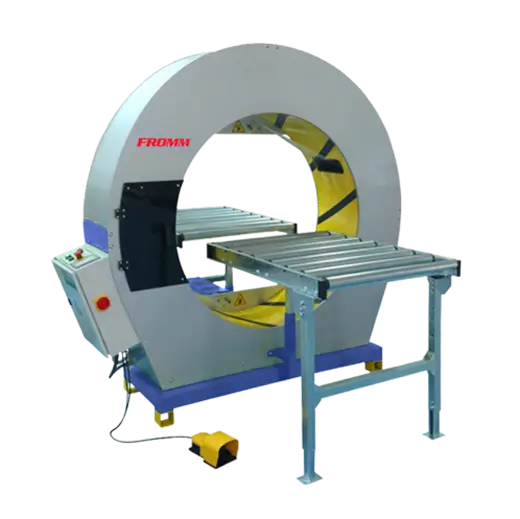

FV300/160 Semi-Automatic Orbital Stretch Wrapper
FV300/160 Semi-Automatic Orbital Stretch Wrapper
The FROMM FV300/160 Semi-Automatic Orbital Stretch Wrapper is perfect for wrapping long products (min. 350mm) through it’s 1600mm diameter ring.
Extremely low maintenance, the FROMM FV range is exceptionally easy to install and operate – Plug and play, no fuss.

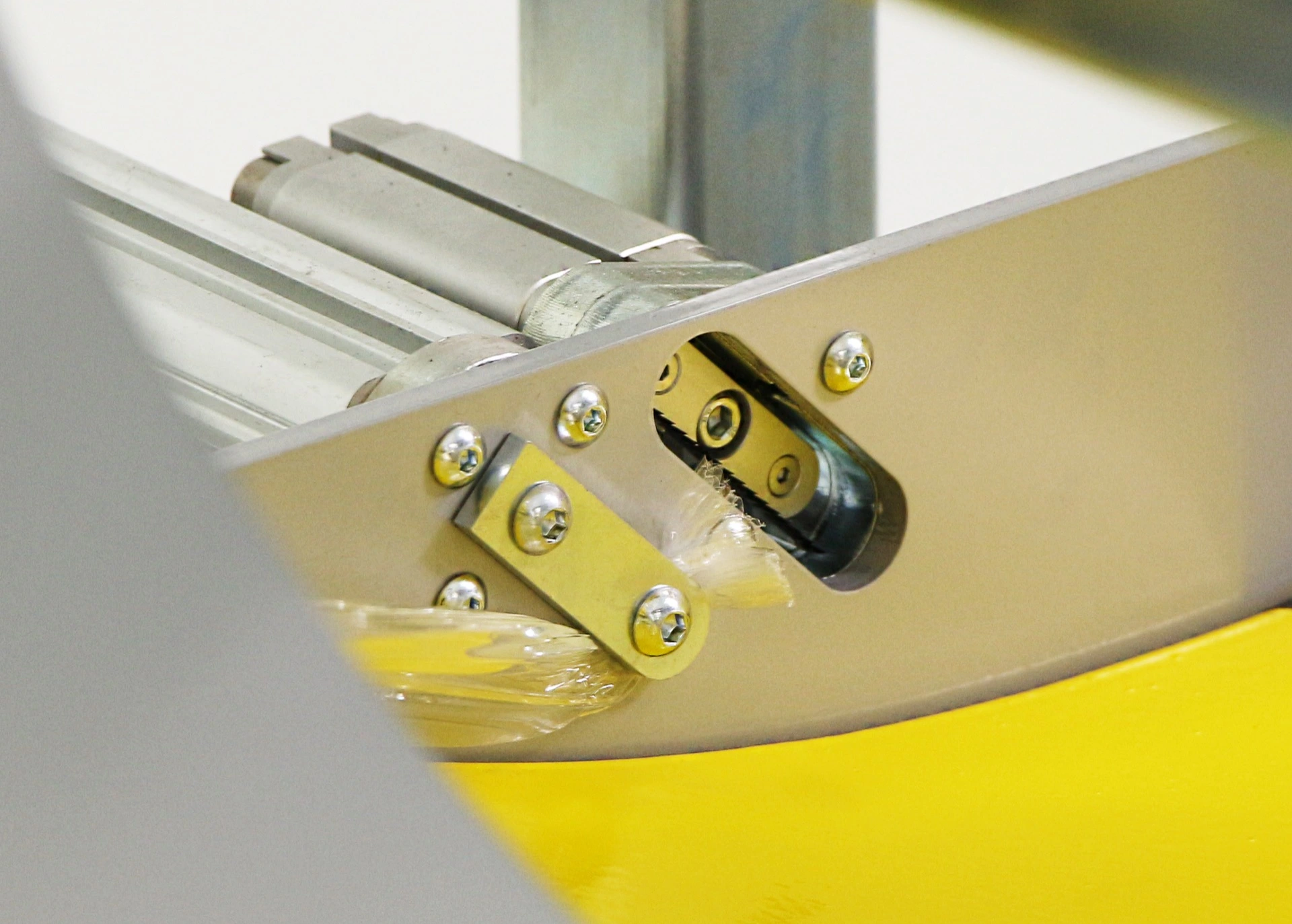

Supplied as standard: automatic film clamp and cut, 5" colour touch screen.
Options include: modem, gravity roller conveyors; side vertical rollers; special bridge to stop short products falling into the wrapping area. We also supply a model for use with fork lift trucks with optional wired or wireless remote and optional metal guarding.
The following products can easily be wrapped using a spiral wrapper: aluminium profiles, architraves, handrails, ladders, MDF mouldings, pipes, racking, radiators, rods, skirting boards, tubes, window frames.
Features
- Double reel film dispensers
- Adjustable speed (RPM)
- Mechanical film break
- Manual start by foot switch
Benefits
- High speed throughput
- Easily accommodates different products
- Plug and play technology
- Fast film reel changes
- Fully CE compliant
Machine Specifications
- Ring Diameter1600mm
- Max Product SizeH: 1250mm, W: 1580
- Min. Product SizeH: 360 mm, W: 360 mm
- Max Rotating Speed50 RPM
- Max Product WeightDependent on conveyors
- Film Width100/160/250mm (38mm core)
- Power240 Volts
- Air Supply Needed6 bars
Machine Options
- ConveyorsInfeed & Outfeed (driven or gravity)
- Automatic Film Cut and ClampStandard
- Top Press and/or Side GuidesAvailable
- Bridge for Short ProductsAvailable
- Safety SystemAvailable
