FV300/125 Semi-Automatic Orbital Stretch Wrapper

FV300/125 Semi-Automatic Orbital Stretch Wrapper

The FROMM FV300/125 Semi-Automatic Orbital Stretch Wrapper is perfect for wrapping long products through it’s 1250mm diameter ring.

Extremely low maintenance, the FROMM FV range is exceptionally easy to install and operate – Plug and play, no fuss.

Supplied as standard: automatic film clamp and cut, 5" colour touch screen.
Options include: modem, gravity conveyors, top press, side guides, bridge to stop short products falling into the wrapping area.

The following products can easily be wrapped using a spiral wrapper: aluminium profiles, architraves, handrails, ladders, MDF mouldings, pipes, racking, radiators, rods, skirting boards, tubes, window frames

quote request

Features

Double reel film dispensers
Adjustable speed (RPM)
Mechanical film break
Manual start by foot switch
Infeed and outfeed conveyors available
Top pressers available to hold load in wrapping cycle

Benefits

High speed throughput
Easily accommodates different products
Plug and play technology
Fast film reel changes
Fully CE compliant

Machine Specifications

Ring Diameter
1250mm
Max Product Size
H: 850mm, W: 1240mm
Min. Product Size
H: 300 mm, W: 300 mm
Max Rotating Speed
65 RPM
Max Product Weight
Dependent on conveyors
Film Width
100/166/250mm (38mm core)
Power
240 Volts
Air Supply Needed
6 bars

Machine Options

Conveyors
Infeed and Outfeed
Automatic Film Cut and Clamp
Standard
Top Presser and/or Side Guides
Available
Bridge for Short Products
Available
Safety System
Available

FV300/125 Semi-Automatic Orbital Stretch Wrapper | FROMM

Related Products

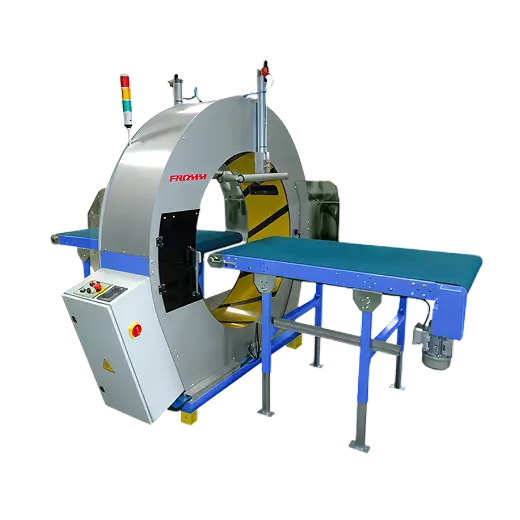

FV350/125 Automatic Orbital Stretch Wrapper

The FROMM FV350/125 Automatic Inline Orbital Stretch Wrapper is an automated system to stretch wrap long products such as pipes, tubes and rods. This fully automatic programmable machine with a 1250mm diameter ring, when combined with conveyors, and safety systems is the ideal solution for small process lines.

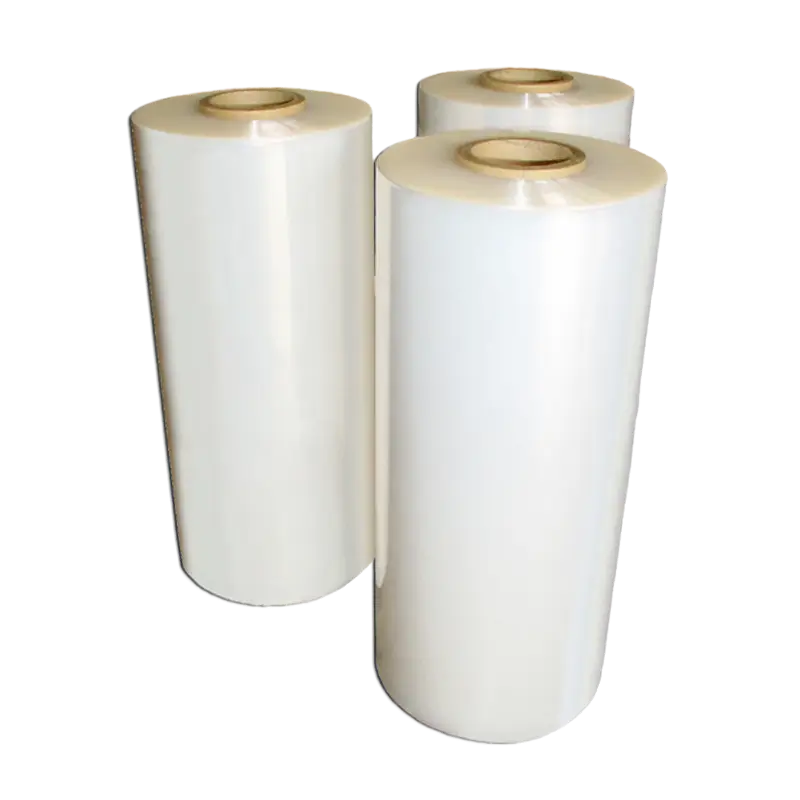

Stretch Wrap Machine Film
