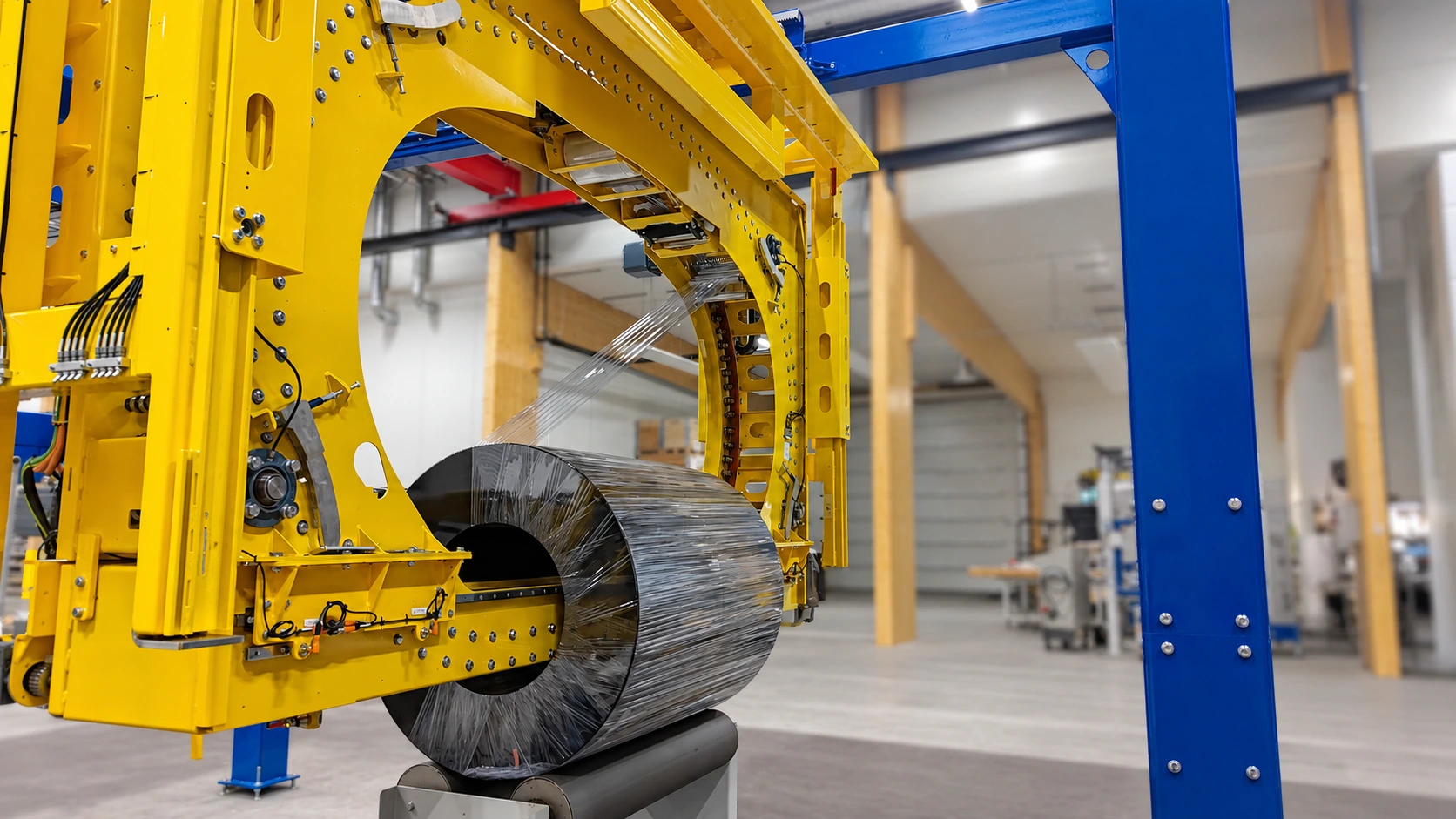

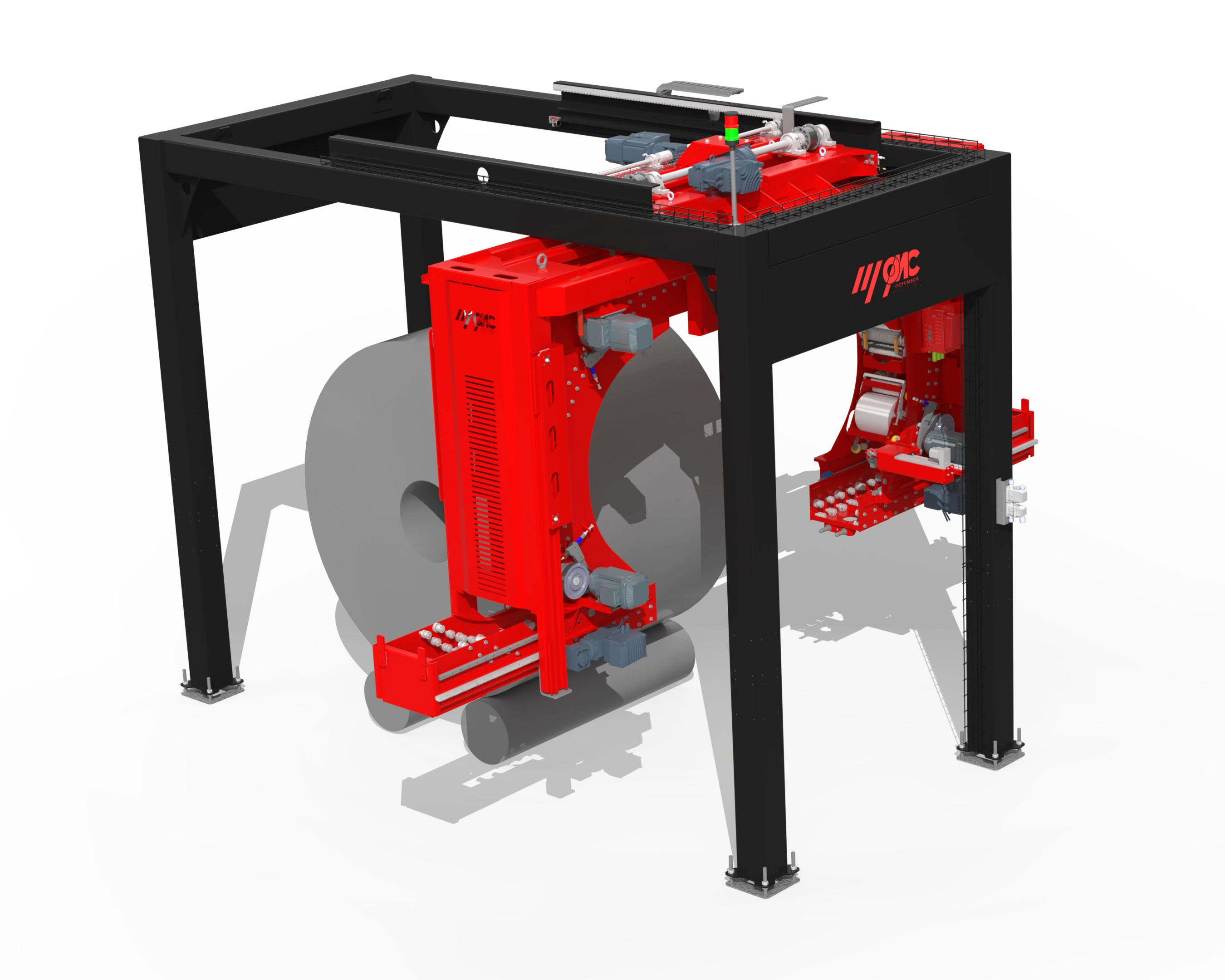

The OMC SILMA Wrapper wraps reels (paper, metal composite) through the eye.  It provides protection for reels and coils throughout the handling, storage and transport process.

The SILMA X1 and X2 offer an all-electric solution with no pneumatic components, ensuring less maintenance and higher reliability.  With robust construction, Siemens PLC and SEW motors, these machines guarantee a sustainable and automated wrapping process.

By applying stretch film with precision and control, the SILMA system prevents surface damage, scratches and moisture ingress, while offering protection against corrosion for metal products. This ensures your goods arrive in optimal condition, reducing claims, rework and downtime.

SILMA delivers maximum product protection, operational flexibility and long-term packaging efficiency for demanding industrial applications.

•    SILMA X1: Coil width 600 – 1,550mm
•    SILMA X2: Coil width 600 – 2,300mm
•    Both models:  Core ID Ø 508 – 610mm;  OD Ø 800 – 2,200 mm

Standard features:  20rpm wrapping speed (2.9 sec/cycle), mechanical film carriage (30-40% pre-stretch) for OD 250mm, W250mm, Core 76mm, auto film hold/cut (no tail sealing).  Options include:  second film carriage, turning rollers, conveyor controls, safety fences, light guards.  Footprint: W6000mm x L6000mm x H4000mm.

Features & Benefits:
•    Robust steel construction, built for 24/7 operation
= increased productivity, optimum OEE and low TCO (Total Cost of Ownership).

•    Advanced PLC Control with Touchscreen HMI
= increased productivity, optimum OEE and low TCO (Total Cost of Ownership).

•    All main options are retrofittable
= Future Proof.

•    Fully CE compliant
= maximum operator safety.

•    Fully tested before dispatch
= No time lost during Installation & Commissioning.
