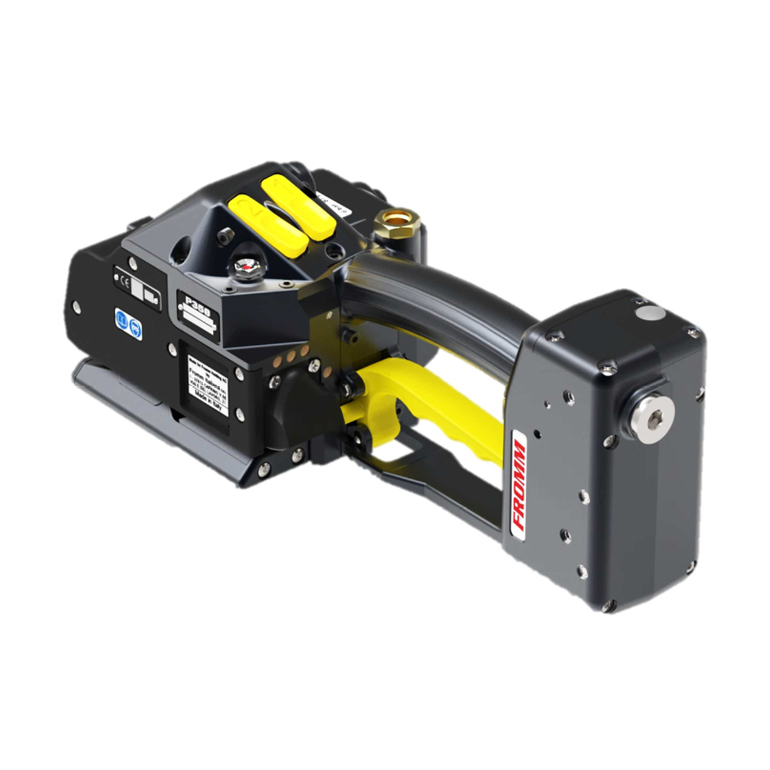

P358 Pneumatic Powered Plastic Strapping Tool

The FROMM P358 is remarkably versatile, pleasant to operate and a consistent working tool. Applicable for a wide range of vertical and horizontal transport securing applications, and an excellent tool for applications where electrical strapping tools cannot or may not be used.

The P358 is best suited to high volume strapping environments, as it operates continuously without the need to be recharged. Thanks to its robust and durable design it is the perfect addition to any industrial warehouse or factory. Compatible with PET strapping and tensioning of up to 4000N.

Advantages & Benefits

The perfect solution where electrical powered tools, for safety or technical reasons, must not or cannot be used;
Choose your own operation mode – manual or semi-automatic – using the external selection screw;
Easy strap threading – both straps are inserted together;
Sealing time and strap tension are easy to adjust, resulting in the best possible seal efficiency and appropriately tensioned straps, resulting in perfectly secured packages;
In addition, strap tension can be blocked for a consistent seal result;
A signalisation pin shows you the end of each strapping cycle, to warrant an optimal seal cooling time;
Pneumatically powered, very reliable and maintenance-friendly;
The compressed air, can be connected to the tool either on top of the main housing or at the rear end;
For packages with a rough and hard surface, a bottom-base wearing plate is available as accessory;
In cases where soft packages are to be strapped, a plastic bottom-base protection plate is available;
This tool is ideal for a wide variety of vertical and horizontal strapping positions, suitable for almost all applications in various industries.

P358 Strapping Tool Video

P357 & P358 Pneumatic Plastic Strapping Tools

Technical Specifications

Strapping qualities Polyester (PET) & Polypropylene (PP), plain and embossed
Strapping dimensions width 16,0 – 19,0 mm / 5/8 – 3/4”
thickness 0,65 – 1,35 mm / .026 – .053”
Weight 5.7 kg / 12.6 lbs
Tool size L350 x W133 x H135,5 mm / 13.78” x 5.2” x 5.3”
Type of seal Sealless, friction weld sealing
Average seal strength approx. 75% (depending on strap quality)
Tension force 1.000 – 2.300 N / 225 – 517 lbs | 1.900 – 4.000 N / 427 – 900 lbs (adjustable)
Tension speed approx. 115 mm/s – 4 ½”/s | 70 mm/s – 2 ¾”/s. See chart of types.
Max. air pressure 5,5 – 6,0 bar / 80 - 87 psi
Air consumption 100 Nl/min – 3.5 cu.ft/min Max. pressure drop of 0,5 bar / 7.25 psi
Suspension bracket supplied with the tool
