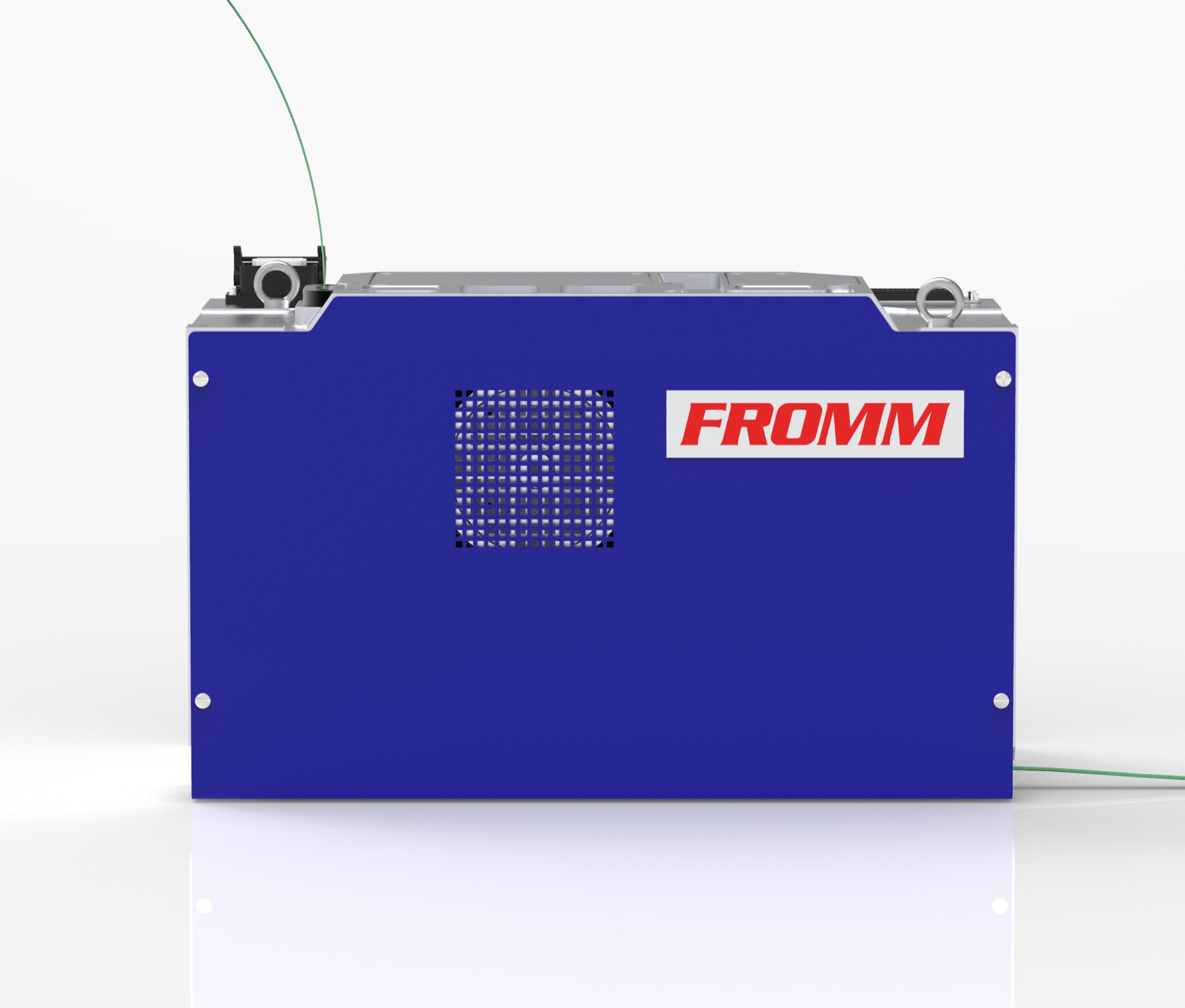

MH610 Automatic Plastic Strapping Head

MH610 Automatic Plastic Strapping Head

Designed for automatic, heavy-duty industrial polyester (PET) strapping applications, the FROMM MH610 friction weld strapping head delivers outstanding reliability, performance and long-term value. Engineered for continuous 24/7 operation, the MH610 supports increased throughput, improved efficiency and optimum OEE, while maintaining a low total cost of ownership (TCO).

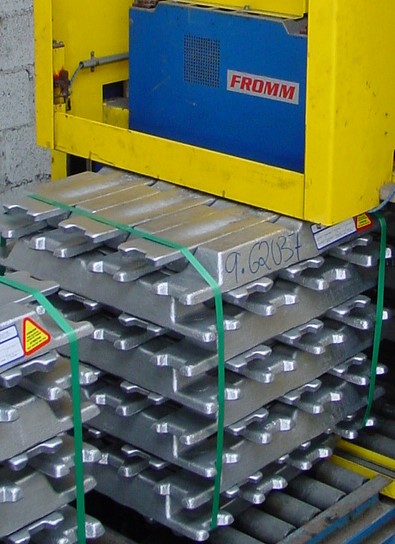

Capable of processing PET strap widths from 25–32 mm and thicknesses from 0.4 to 1.35 mm, the MH610 delivers strap tension of up to 7,000 N. This high performance makes it ideally suited to securing heavy, unitised loads in demanding sectors such as aluminium and steel production.

Fully CE compliant, every MH610 strapping head is rigorously tested prior to dispatch, ensuring fast installation, smooth commissioning and immediate readiness for production. Its robust construction and proven FROMM engineering provide exceptional durability and consistent performance, even in the most demanding industrial environments where uptime is critical.

Ideal for:

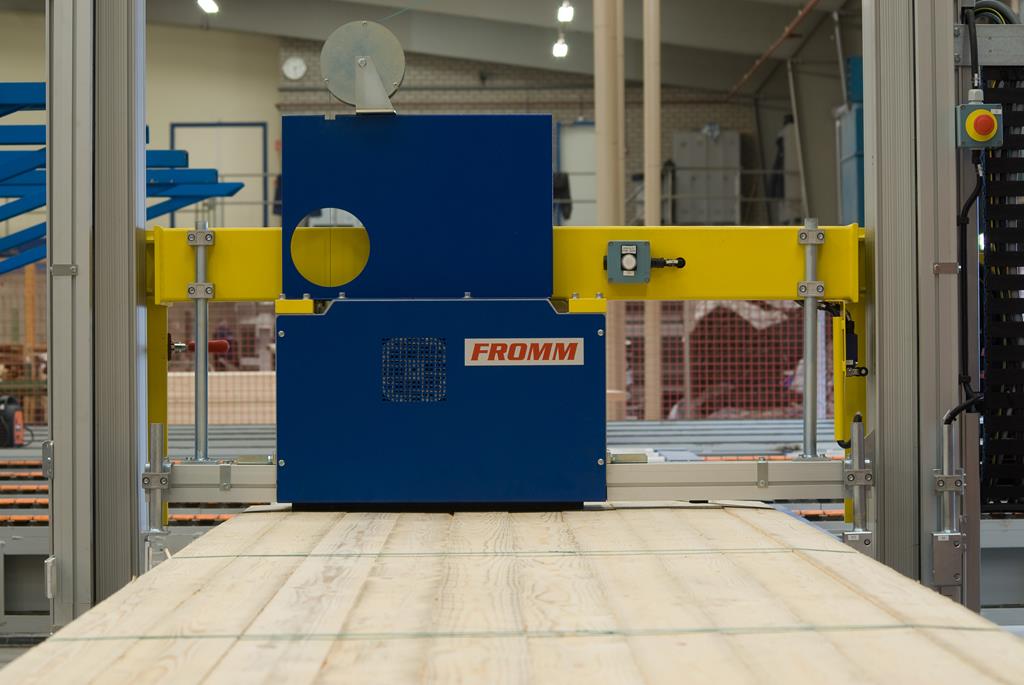

•    Integration into fully automated packaging lines
•    Static or translating (moving) strapping systems
•    Secure strapping of flat, heavy or irregularly shaped packages

Features
  • High strap tension up to 7000N, adjustable
  • One piece, precision engineered, cast aluminium housing
  • Compact, modular design
  • 25mm or 32mm strap width usable, without changing parts
  • Proven separate feed, tension and friction weld sealing systems
  • Three side suspension points and plug connections for easy integration
Benefits
  • Excellent seal efficiency
  • Low maintenance
  • Long service intervals
  • Can be retrofitted into existing strapping systems
  • Low spare parts cost
Technical Specifications
  • Compatible Strap Types
    Polyester (PET)
  • Strapping Dimensions
    25.00 – 32.00mm (Width) x 0.40 – 1.35mm (Thickness)
  • Sealing Method
    Friction Welding
  • Strap Tension
    7000N (Adjustable)
  • Feed/Retract Speed
    5.3 Metres per second
  • Tension Speed
    105mm per second
  • Package Size
    min. Width 250mm x Height 180mm, max. Width 3000mm x Height 3000mm
  • Power Supply
    400V, 3 Phase, 50Hz (optional 230V: please contact us for details)
  • Consumption
    1.1KW
  • Control Voltage
    24V DC
  • Dimensions
    Length 615mm x Width 332mm x Height 450mm
  • Weight
    118KG
