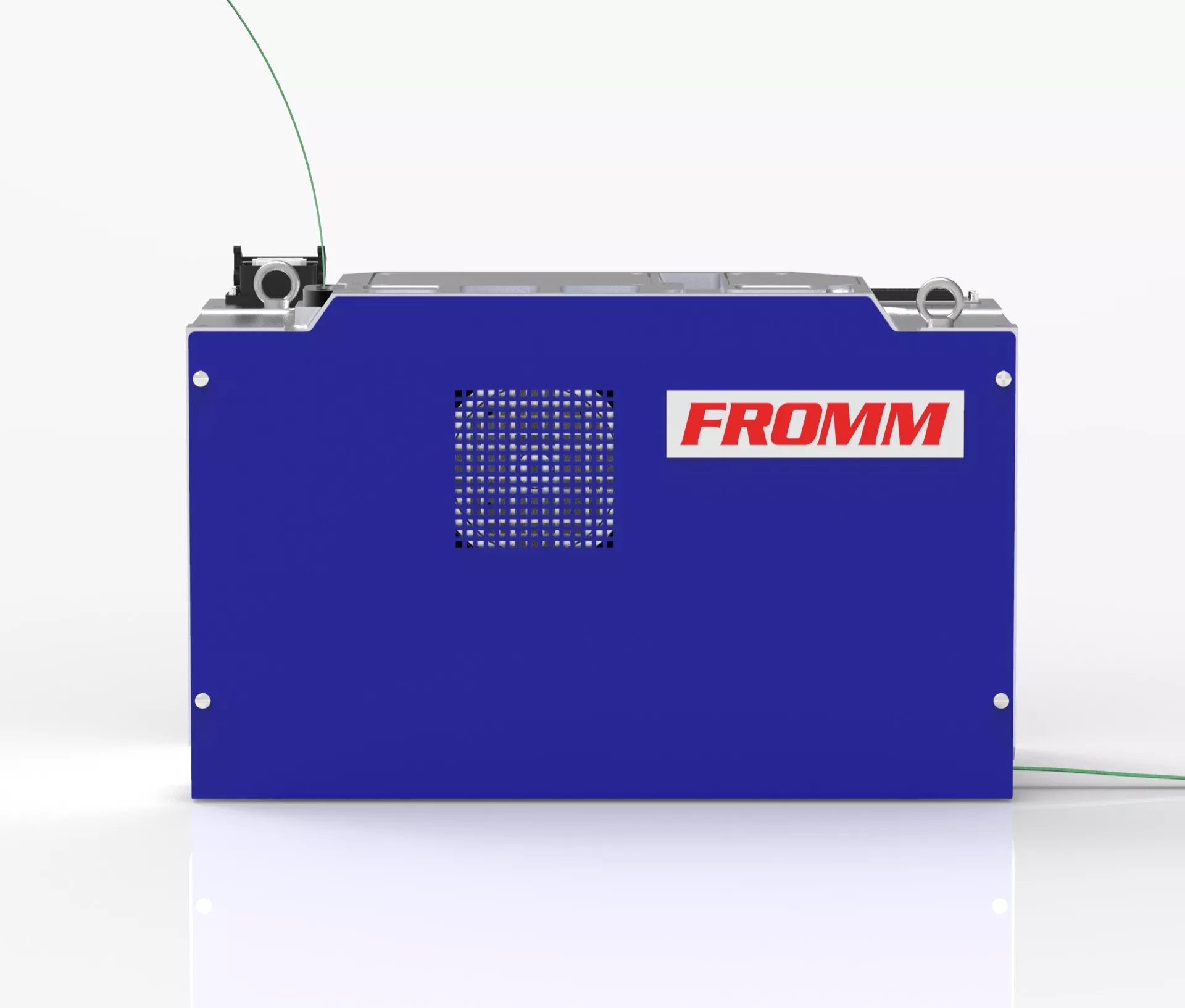

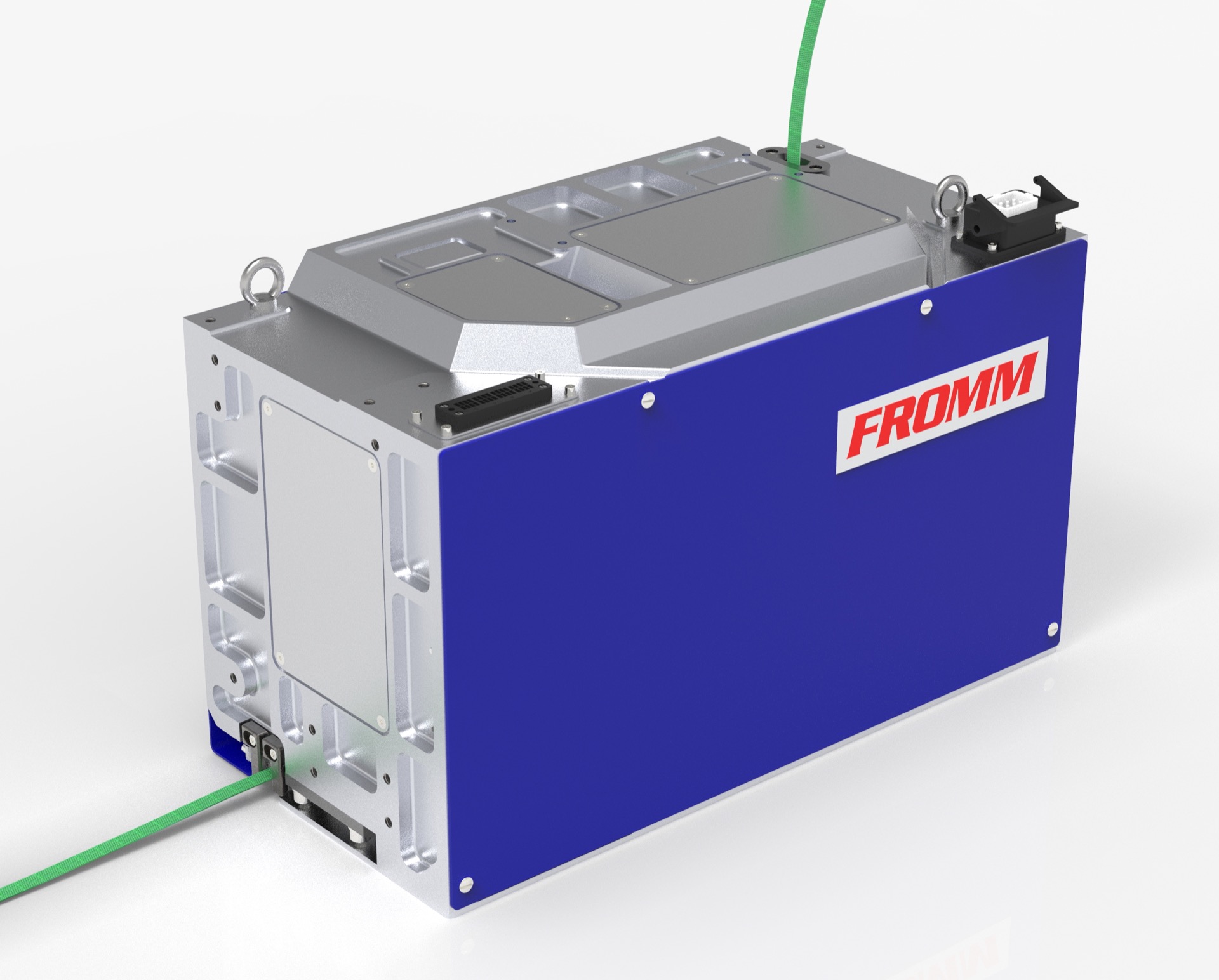

MH600 Automatic Plastic Strapping Head
MH600 Automatic Plastic Strapping Head
Engineered for automatic, heavy-duty industrial polyester (PET) strapping applications, the FROMM MH600 friction weld strapping head delivers exceptional reliability, performance and long-term value. Designed for continuous 24/7 operation, the MH600 supports higher throughput, improved efficiency and optimum OEE, while maintaining a low total cost of ownership (TCO).
The MH600 processes PET strap widths from 13–19 mm and thicknesses from 0.64 to 1.53 mm, delivering strap tension of up to 7,000 N for secure and consistent load containment. Fully CE compliant, every strapping head is thoroughly tested prior to dispatch, ensuring rapid installation, smooth commissioning and immediate production readiness. Robust construction and proven FROMM engineering make the MH600 the ideal choice for demanding industrial environments where uptime, performance and durability are critical.
Ideal for:
• Horizontal and vertical stand-alone strapping machines
• Integration into automated packaging lines
• Static or translating (moving) strapping systems
• Top, bottom or side seal configurations
• Secure strapping of flat or irregularly shaped packages
Features
- Compact and modular design
- One piece of aluminium cast housing
- Strap tension up to 7000N, adjustable
- Strap guide open feature
- Well proven separate feeding, tensioning and friction weld sealing systems
- High consistent seal efficiency because of environment temperature monitoring
- Use of state-of-the-art manufacturing, controlling and material technology
- Three side suspension points and plug connections for easy integration
- Long life and maintenance friendly, resulting in high availability
Benefits
- Excellent seal efficiency
- Low maintenance
- Long service intervals
- Can be retrofitted into existing strapping systems
- Low spare parts cost
Technical Specifications
- Compatible Strap TypesPolyester (PET)
- Strapping Dimensions13.00 – 19.00mm (Width) x 0.64 – 1.53mm (Thickness)
- Sealing MethodFriction Welding
- Strap Tension7000N (Adjustable)
- Feed/Retract Speed5.3 Metres per second
- Tension Speed105mm per second
- Package Sizemin. Width 250mm x Height 180mm, max. Width 3000mm x Height 3000mm
- Power Supply400V, 3 Phase, 50Hz (optional 230V: please contact us for details)
- Consumption1.1KW
- Control Voltage24V DC
- DimensionsLength 615mm x Width 307mm x Height 450mm
- Weight115KG
